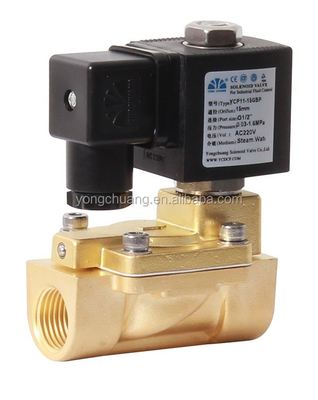

| Characteristic | 1)New design with PTFE diaphragm, orifice seals have 2 options: PTFE or FKM. Diaphragm structure is acceptable for media with dirts,anti stucking.Better than piston valve. Especially good for new equipped system with some dirts. Also good for compressed air, by using FKM orifice sealing,PTFE diaphargm good for tearing resistance. Isolation structure is also available. Craft hole by using pnuematic structure with bolls, avoid leakage problem 2) Low temperature rising, can also matching with energy saving coil. Energy saving,starting 105W,holding 4.5VA (AC) starting 35W,holding 5W(DC) 3) Price:lower than piston type,performance better. |
| Medium | steam,air.hotwater,pesticide,etc. |
| Temperature | PTFE: -30°C to 200 °C FKM:-10°C to 150 °C |
| Pressure | 0.03-1.6Mpa |
| Port size | 3/8'-1'' |
| Port thread | G,NPT |
| Orifice | 12-25mm |
| Voltage | DC-12V,24V AC-24V,120V,110V,220V/50HZ |
| Tolerance | ±10% |
| Coil | S91BL,15VA(AC),10W(DC),IP65,100%ED GE11B, start 105W,hold 4.5VA(AC) start 35W,hold 5W(DC) |
| Special coils | |
| Material | Body-Brass,Stainless steel Seal- PTFE,FKM Amature tube-stainless steel 304 Plunger-stainless steel430F Stop-stainless steel 430F Springs-SS304 Shading rings- red copper |
|
